Server-to-Server (S2S) Callbacks
Server-to-server callbacks enable you to reward users for ad views with in-game currency or other rewards. When a user successfully completes an ad view, you can configure a callback from Liftoff's servers to your own to notify you of the user's completed action.
One benefit of this approach is control. This method allows you to make changes and updates directly on the server side, so there's no need to push an update. Another benefit is security in preventing replay attacks (when a valid data transmission is maliciously or fraudulently repeated or delayed).
Implementation
- Note for Liftoff Monetize SDK v. 6.x: Starting with SDK v. 6.1, we have moved the rewarded option to the dashboard, so that publishers can easily change the option without a code change. In your dashboard, you just need to create a placement with Rewarded Placement type.
-
Notes for Liftoff Monetize SDK v.1.0 - v.4.1:
-
For iOS, begin by setting the
vunglePlayAdOptionKeyIncentivized
option in yourplayAd
object to ‘yes’. -
For Android, begin by setting the setIncentivizedFields option in your
AdConfig
object to ‘true’.
-
For iOS, begin by setting the
Implementation for all Liftoff Monetize SDK Versions
When a user watches 80% or more of a rewarded ad, it is considered a completed view. Liftoff will then ping your servers with a callback URL, which looks something like this:
http://acme.com/bugzBunny/reward?amount=1&uid=%user%&etxid=%etxid%&edigest=%edigest%
We recommend using etxid and edigest, like this:
http://acme.com/bugzBunny/reward? amount=1&uid=%user%&txid=%txid%&digest=%digest%
Or use txid and digest that has been traditionally offered like this:
http://acme.com/bugzBunny/reward?amount=1&uid=%user%&txid=%txid%&digest=%digest%

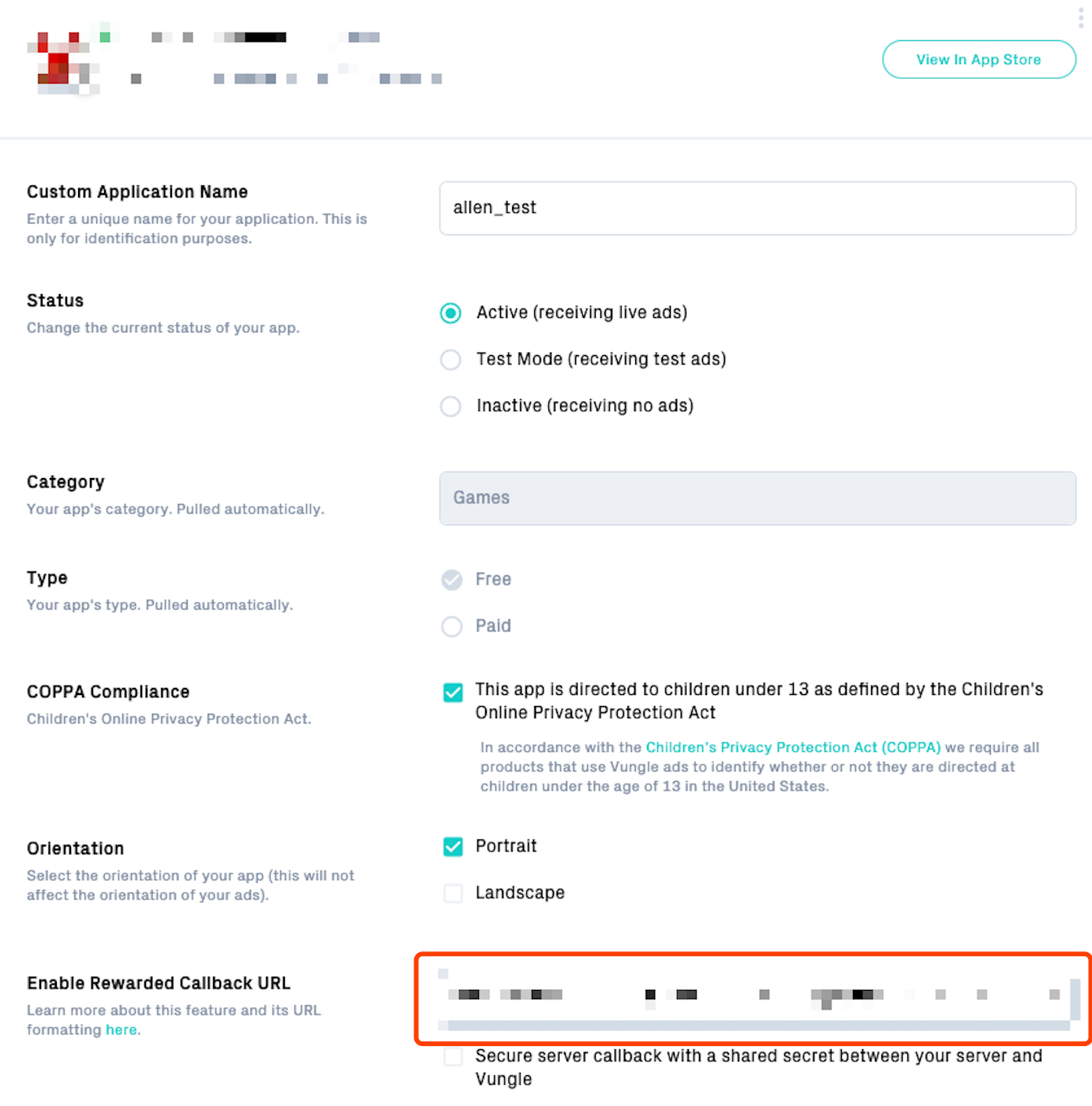

Configure the callback URL in your app's Settings on the dashboard (as shown below).
Most publishers only use %user%
, %etxid%
, and %edigest%
for security, but all of the following are available:
Variables |
Description |
|
The username provided to the Liftoff Monetize SDK via: ● iOS: The ● Android: The Vungle. |
|
A unique identifier for the device |
|
● iOS: Apple's unique identifier for the device. ● Android: This will return the Google Advertiser ID |
|
A unique transaction ID for the completed view with server timestamp; transactionID:timestamp (recommended) |
|
Security token to verify that the callback came from Liftoff; refer to the Security section for details (recommended) |
|
A unique transaction ID for the completed view |
|
Security token to verify that the callback came from Liftoff; refer to the Security section for details |
Note that %user%
is the only variable you need to pass in. The rest will come back from Liftoff's servers if you include them in the callback URL.
Reward Configuration
Now that you can reward a user for watching an ad, what do you give them? If you're giving out gems every time, it's pretty straightforward. But what if you want to get a bit more advanced? We don't have a built-in option for reward configuration, but here's what we recommend:
Example: Coins vs. Lives
Let's say your app has rewarded ads in multiple places: both in your shop and at every third “game-over.” You want to reward the player with coins in the shop, and with a life at game-over. For each instance of playAd()
, configure the user like this:
userName123:coins or userName123:lives
Then, when your servers receive Liftoff's callback, parse %user%
for the correct reward!
Security
Authenticating Callbacks

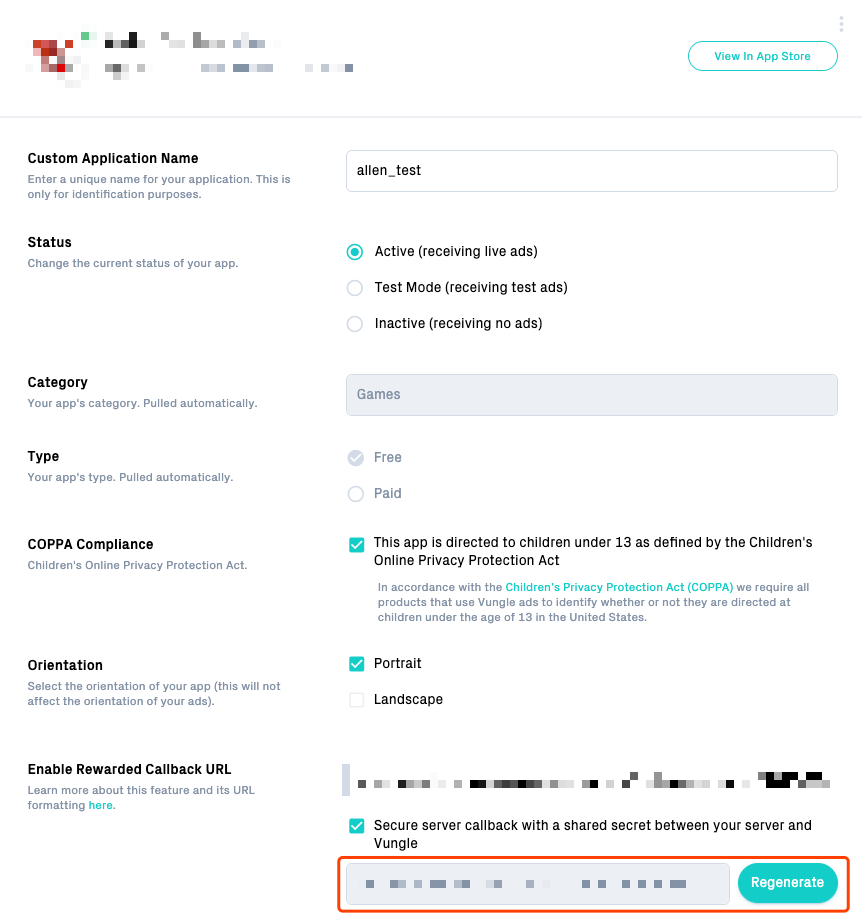

In order to verify that callbacks you receive originated from Liftoff, select the Secret Key for Secure Callback checkbox for your application. This will generate a secret key like this:
4YjaiIualvm8/4wkMBRH8pctlqB1NyzhK3qUGUar+Zc=
You can use the key to verify the origin of the callback as follows:
- Create the raw transaction verification string by concatenating your secret key with the transaction ID, separated by a colon, like this:
transactionString = secretKey + ":" + %txid% or %etxid%
- Hash the bytes of the
transactionString
twice using the SHA-256 algorithm. - Generate the transaction verification token by hex-encoding the output bytes of two sequential rounds of SHA-256 hashing, which will look something like this:
transactionToken = 870a0d13da1f1670b5ba35f27604018aeb804d5e6ac5c48194b2358e6748e2a8
- Check that the
transactionToken
you generated equals the one sent in the callback query string as%digest%
or%edigest%
De-Duplicating Callbacks And Preventing Replay Attacks
There can be events where duplicate callbacks can reach your server due to network issues and replay attacks. To prevent a single callback from being replayed multiple times against your server, store authenticated transaction IDs and reject future callbacks with duplicate transaction IDs.
Using etxid
(recommended)
etxid
consists of hashed value that is unique for each advertisement event, followed by server side timestamp, therefore the entire string will be also unique.
Using txid
txid
consists of hashed value of device ID, followed by device level timestamp, therefore you must incorporate the timestamp to enforce a cutoff line for rewarding.
- Extract the timestamp (in milliseconds) from the transaction ID like this:
transactionMillis = transactionId.substringAfter(":")
- Check that
transactionMillis
is later than your cutoff and thattransactionId
has not been encountered since your cutoff.
Sample Code
These bits of sample code will help you implement server-to-server callbacks security! We have examples for: Node.js, Java, Python, and Ruby. Note that:
- The
transaction_id
can be%txid%
or%etxid%
(recommended). - For
%etxid%
, the verification hash should be%edigest%
.
var crypto = require('crypto');
function isTransactionValid(secret, transaction_id, provided_hash) {
return isTransactionRecent(transaction_id) &&
isTransactionNew(transaction_id) &&
createSecurityDigest(secret, transaction_id) === provided_hash;
}
function getTransactionTimestamp(transaction_id) {
return parseInt(transaction_id.split(":")[1], 10) || null;
}
function isTransactionRecent(transaction_id) {
// Does the transaction have a reasonable format?
var tx_timestamp = getTransactionTimestamp(transaction_id);
if (tx_timestamp === null) { return false; }
// Is the transaction within a reasonable time range?
var now = new Date().getTime();
var time_diff = now - tx_timestamp;
var hour_in_future = -1000 * 60 * 60, three_days_ago = 1000 * 60 * 60 * 24 * 3;
return (time_diff < three_days_ago && time_diff > hour_in_future);
}
// Have we seen this transaction before?
// NOTE: To scale beyond just this one node process, you'll need to put this in some
// sort of centralized datastore. Any one that supports atomic insertions into a set
// should do. The Redis database, with its SADD command, would be a good place to start.
var known_transactions = {};
function isTransactionNew(transaction_id) {
// For %etxid%, extract unique event id from etxid, which is the string before “:”, and use it to identify unique ad events
if (known_transactions[transaction_id]) { return false; }
known_transactions[transaction_id] = true;
return true;
}
function createSecurityDigest(secret, transaction_id) {
var firsthash = crypto.createHash("sha256").update(secret + ":" + transaction_id).digest("binary");
return crypto.createHash("sha256").update(firsthash,"binary").digest("hex");
}
import java.nio.charset.Charset;
import java.security.MessageDigest;
import java.security.NoSuchAlgorithmException;
import java.text.ParseException;
public class ServerCallbackSecurityExample {
private static final long MAX_CALLBACK_AGE_MILLIS = 7 * 24 * 60 * 60 * 1000; // 7 days
/**
* Checks that a transaction is recent enough, signed with the secretKey, and not a duplicate.
*
* @param transactionId the transaction ID.
* @param secretKey a shared secret.
* @param verificationDigest the verification digest sent in the callback querystring.
*/
public boolean isValidTransaction(String transactionId, String secretKey, String verificationDigest) throws NoSuchAlgorithmException {
return isRecentTransaction(transactionId)
&& isDigestValid(transactionId, secretKey, verificationDigest)
&& isNewTransaction(transactionId);
}
protected boolean isRecentTransaction(String transactionId) {
boolean isRecent = false;
try {
final long minCallbackAgeMillis = System.currentTimeMillis() - MAX_CALLBACK_AGE_MILLIS;
final long transactionMillis = getTransactionMillis(transactionId);
isRecent = (transactionMillis > minCallbackAgeMillis);
}
catch (ParseException exception) {
// invalid transaction ID format
}
return isRecent;
}
protected boolean isDigestValid(String transactionId, String secretKey, String verificationDigest) throws NoSuchAlgorithmException {
return createSecurityDigest(transactionId, secretKey)
.equals(verificationDigest);
}
protected boolean isNewTransaction(String transactionId) {
// TODO if transactionId is new, store the transactionId with its associated transactionMillis
// For %etxid%, extract unique event ID from etxid, which is the string before ":", and use it to identify unique ad events
return true;
}
protected long getTransactionMillis(String transactionId) throws ParseException {
final int transactionMillisIndex = transactionId.lastIndexOf(":") + 1;
try {
if (transactionMillisIndex > 0 && transactionMillisIndex < transactionId.length()) {
return Long.parseLong(
transactionId.substring(transactionMillisIndex));
}
else {
throw new ParseException("No timestamp in transaction ID", transactionMillisIndex);
}
}
catch (NumberFormatException exception) {
throw new ParseException("Invalid transaction ID timestamp", transactionMillisIndex);
// invalid timestamp
}
}
protected String createSecurityDigest(String transactionId, String secretKey) throws NoSuchAlgorithmException {
final String verificationString = secretKey + ":" + transactionId;
final MessageDigest messageDigest = MessageDigest.getInstance("SHA-256");
return toHexString(
messageDigest.digest(
messageDigest.digest(
verificationString.getBytes(Charset.forName("US-ASCII")))));
}
protected String toHexString(byte[] bytes) {
final StringBuffer hexStringBuffer = new StringBuffer();
for (final byte byt : bytes) {
hexStringBuffer.append(
Integer.toString((byt & 0xff) + 0x100, 16)
.substring(1));
}
return hexStringBuffer.toString();
}
}
import hashlib, time
def isTransactionValid(secret, transaction_id, input_hash):
"""Returns whether this transaction id / hash should be considered valid"""
return isTransactionIDRecent(transaction_id) and \
isTransactionIDNew(transaction_id) and \
createSecurityDigest(secret, transaction_id) == input_hash
def getTransactionTimestamp(transaction_id):
"""Will return the unix time (in milliseconds) of this transaction, or None if invalid"""
parsed = transaction_id.split(":")
try:
return int(parsed[1]) if len(parsed) == 2 else None
except ValueError as e:
return None
def isTransactionIDRecent(transaction_id):
"""Is this transaction within a reasonable time range?"""
tx_time = getTransactionTimestamp(transaction_id)
# Handle bad transaction:
if tx_time is None:
return False
# Handle bad transaction times:
now = int(time.time() * 1000)
three_days_ago = now - (1000 * 60 * 60 * 24 * 3)
one_hour_from_now = now + (1000 * 60 * 60)
return ( three_days_ago < tx_time < one_hour_from_now )
def isTransactionIDNew(transaction_id, known_transaction_ids=set()):
"""Is this a duplicate transaction?
NOTE: We only use the Python set for simplicity. For better / more centralized solutions,
you can use any datastore that supports atomic insertion into a set. For starters, try
Redis with its "SADD" command."""
"""For %etxid%, extract unique event ID from etxid, which is the string before ":", and use it to identify unique ad events"""
if transaction_id in known_transaction_ids:
return False
# Else, valid:
known_transaction_ids.add(transaction_id)
return True
def createSecurityDigest(secret, transaction_id):
"""Will return the string that the security hash should have been"""
firsthash = hashlib.sha256()
firsthash.update(secret + ":" + transaction_id)
secondhash = hashlib.sha256()
secondhash.update(firsthash.digest())
return secondhash.hexdigest()
require "openssl"
require "digest/sha2"
require "base64"
require "time"
# just some helper methods, ignore if using Rails
class Fixnum
SECONDS_IN_DAY = 24 * 60 * 60
HOURS_IN_DAY = 24 * 60
def days
self * SECONDS_IN_DAY
end
def hour
self * 60 * 60
end
def ago
(Time.now - self)
end
def from_now
(Time.now + self)
end
end
def transaction_valid?(secret, txid, input_hash)
transaction_id_recent?(txid) && transaction_id_new?(txid) && create_security_digest(secret, txid) == input_hash
end
def transaction_timestamp(txid)
arr = txid.split(":")
return arr[1].to_i if arr.size == 2
end
def transaction_id_recent?(txid)
tx_time = transaction_timestamp(txid)
return false if tx_time.nil?
now = Time.now.to_i
three_days_ago = 3.days.ago
one_hour_from_now = 1.hour.from_now
three_days_ago.to_i < tx_time && tx_time < one_hour_from_now.to_i
end
# For %etxid%, extract unique event ID from etxid, which is the string before ":", and use it to identify unique ad events
def transaction_id_new?(txid, transactions = [])
return false if transactions.include?(txid)
transactions << txid
return true
end
def create_security_digest(secret, txid)
verification_string = "#{secret}:#{txid}"
first_digest = Digest::SHA2.new(256).update(verification_string)
Digest::SHA2.new(256).hexdigest(first_digest.digest)
end
